Where Is the AirCon Capacitor Located?
Your air conditioner relies on several critical components to operate, and the capacitor is one of the most vital. Acting like a short-term rechargeable battery, the capacitor stores and releases a high-voltage electrical boost to kickstart and power the compressor, outdoor fan motor, and indoor blower motor.
Knowing where the capacitor is located and how to spot signs of failure helps you troubleshoot startup problems safely and protect your system from major electrical damage.
Where to Find the Aircon Capacitor by System Type
The exact location of the capacitor depends on the style of air conditioning unit installed in your home:
- Split-Type Air Conditioner (Most Common in Singapore): The start/run capacitors are located inside the outdoor condenser unit. They sit behind the side electrical access panel (secured by metal screws), placed right next to the main compressor and wiring terminal box.
- Window & Portable Air Conditioners: The capacitor is housed inside the main casing, situated near the control panel assembly adjacent to the internal compressor motor.
- Central Air Conditioning Systems: Located inside the electrical service compartment of the main outdoor condensing unit, directly connected to the compressor and fan motor relays.
Symptoms of a Failing or Dead Capacitor
- Aircon makes a loud clicking or continuous humming sound, but the compressor fails to kick on
- The fan blades spin slowly or refuse to rotate at all
- Aircon blows lukewarm or warm air despite setpoints being on low
- System trips the home circuit breaker immediately upon starting
- Visible bulging, swelling, or oily fluid leaking from the metal canister top
Safe Handling Matrix: DIY Inspection vs. Professional Replacement
Safety Warning: Capacitors store high-voltage electrical charges even when your aircon is completely turned off or unplugged. Touching capacitor terminals without proper safety discharge tools can cause severe electrical shock.
| Issue / Feature | Safe DIY Action | Professional Repair Solution |
|---|---|---|
| Physical Inspection | Turn off wall isolator power and visually check outdoor panel for external damage. | Remove access covers, safely discharge residual voltage, and disconnect wiring. |

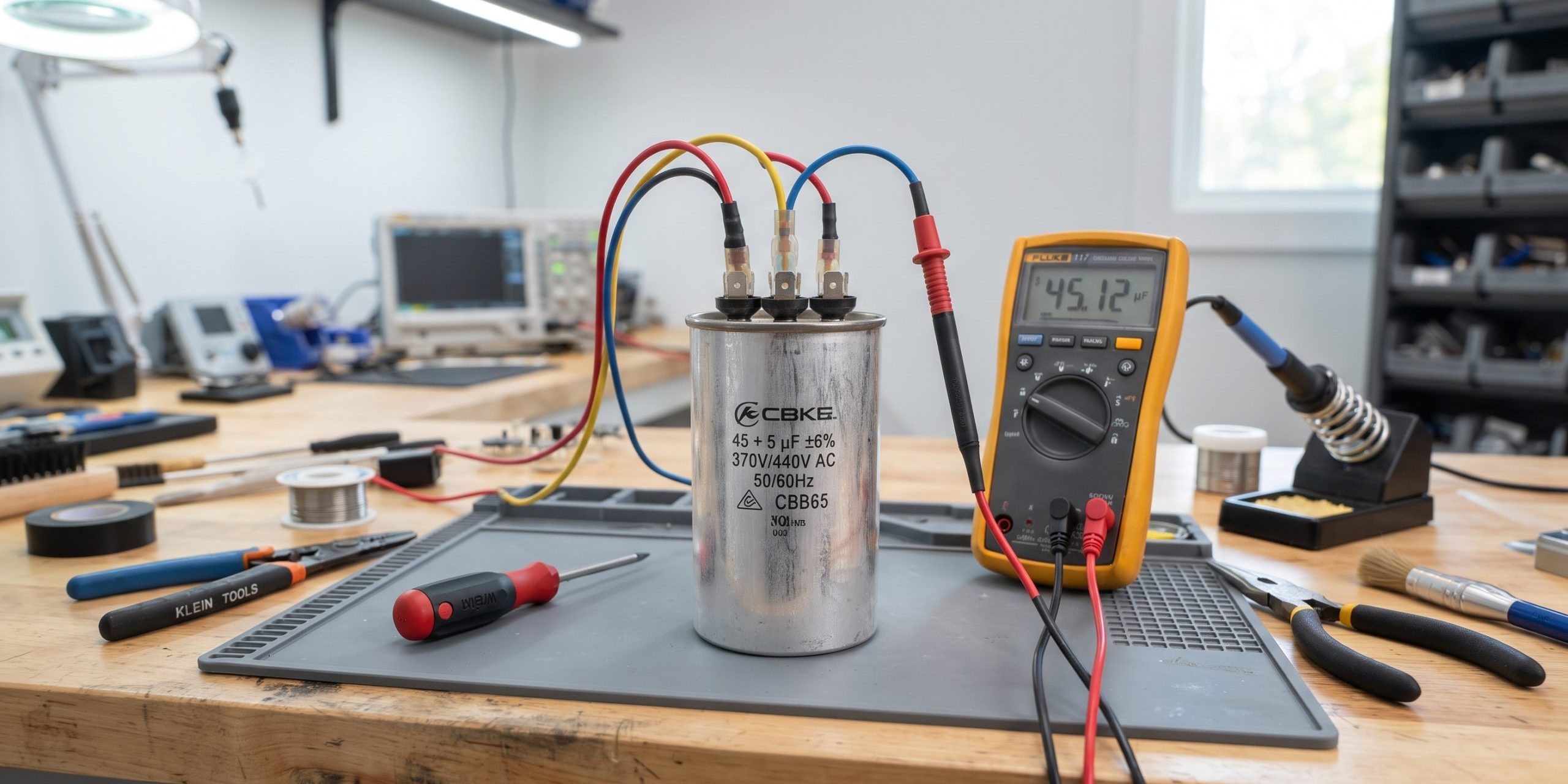

| Diagnostic Testing | Check if circuit breakers are tripped or remote batteries are dead. | Test microfarad ($mutext{F}$) capacitance levels using a specialized HVAC multimeter. |
| System Hum / No Start | Turn off unit immediately to prevent compressor motor burnout. | Safely extract blown unit and install exact-spec OEM replacement capacitors. |
| Loose/Burnt Wiring | Inspect surrounding area for signs of burning smells or smoke. | Replace damaged wiring terminals, relays, and PCB connection points. |
